6mm2 XLPE Solar DC Cable 600V/1000V TUV UL CE Certified

Name: 6mm2 XLPE Solar DC Cable 600V/1000V TUV UL CE Certified
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K
Availability: InStock

جزئیات محصول

گواهی: TUV & CE & ISO9001 & CQC & CPR & BCA

Model Number: H1Z2Z2-K

شرایط پرداخت و حمل و نقل

Minimum Order Quantity: 500

قیمت: negotiable

Packaging Details: 100m/roll

Delivery Time: 7-25days

شرایط پرداخت: T/T، L/C در دید

Supply Ability: 10000000

بهترین قیمت را دریافت کنید

اکنون تماس بگیرید

مشخصات

توضیحات

مشخصات

برجسته کردن:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    6mm2 XLPE solar DC cable,TUV certified solar DC cable,600V 1000V solar DC cable, TUV certified solar DC cable, 600V 1000V solar DC cable


رتبه ولتاژ:	600V/1000V	مادی:	XLPE
وزن:	76 کیلوگرم در کیلومتر	Model:	Solar Cable
مجوزها:	TUV ، UL ، CE	مقاومت در برابر سایش:	بله
جنس ژاکت:	XLPE	هادی داخلی:	6mm2

رتبه ولتاژ:	600V/1000V
مادی:	XLPE
وزن:	76 کیلوگرم در کیلومتر
Model:	Solar Cable
مجوزها:	TUV ، UL ، CE
مقاومت در برابر سایش:	بله
جنس ژاکت:	XLPE
هادی داخلی:	6mm2

توضیحات

6mm2 XLPE Solar DC Cable 600V/1000V TUV UL CE Certified

Dependable and Durable Solar Direct Current Cable 6mm² with Abrasion Resistance

Attribute	Value
Voltage Rating	600V/1000V
Material	XLPE
Weight	76kg/km
Model	Solar Cable
Certifications	TUV, UL, CE
Abrasion Resistance	Yes
Jacket Material	XLPE
Inner Conductor	6mm²

Premium Solar DC Cable for Efficient Energy Transmission

The DC Solar Cable is a high-quality photovoltaic direct current cable specifically engineered for solar energy applications. Featuring waterproof construction, this cable delivers exceptional durability and reliability in outdoor installations, even under harsh weather conditions.

Key Features

Optimized 6mm² conductor for low resistance and maximum power transfer
XLPE (Cross-linked Polyethylene) jacket material for superior UV, moisture, and heat resistance

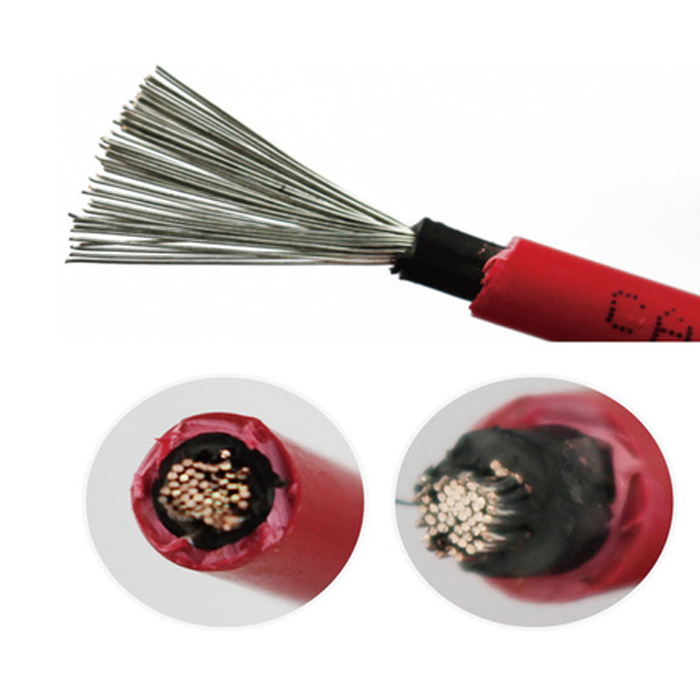

Tinned copper conductor for enhanced conductivity and corrosion resistance
Certified by TUV, UL, and CE for safety and performance compliance
Excellent abrasion resistance for long service life
Available in standard black/red color coding

Technical Specifications

Material	XLPE
Voltage	1800V DC
Conductor	Tinned Copper
Cable Specification	1x6mm²
Resistance	≤3.39(Ω/KM)

Applications

This high-performance solar cable is ideal for:

Large-scale photovoltaic power stations
Residential and commercial solar systems
Solar street lighting installations
Industrial solar applications
Grid-connected and off-grid solar solutions

Customization Options

We offer flexible customization for your solar cable requirements:

Model Number	H1Z2Z2-K
Minimum Order Quantity	500
Packaging	100m/roll
Delivery Time	7-25 days
Payment Terms	T/T, L/C At Sight

Support & Services

Our technical support team provides comprehensive assistance for installation, troubleshooting, and maintenance throughout your solar cable's lifecycle.

Packaging & Shipping

Each DC Solar Cable is securely packaged in 100m rolls with protective wrapping. Orders ship within 1-2 business days with tracking information provided.

Frequently Asked Questions

What certifications does this solar cable have?

The cable is certified by TUV, CE, ISO9001, CQC, CPR, and BCA.

What is the conductor material?

The conductor is made of high-quality tinned copper for optimal conductivity and durability.

Is this cable suitable for outdoor use?

Yes, the XLPE jacket provides excellent protection against UV radiation, moisture, and temperature extremes.
